Double Acting Y- Control Valve

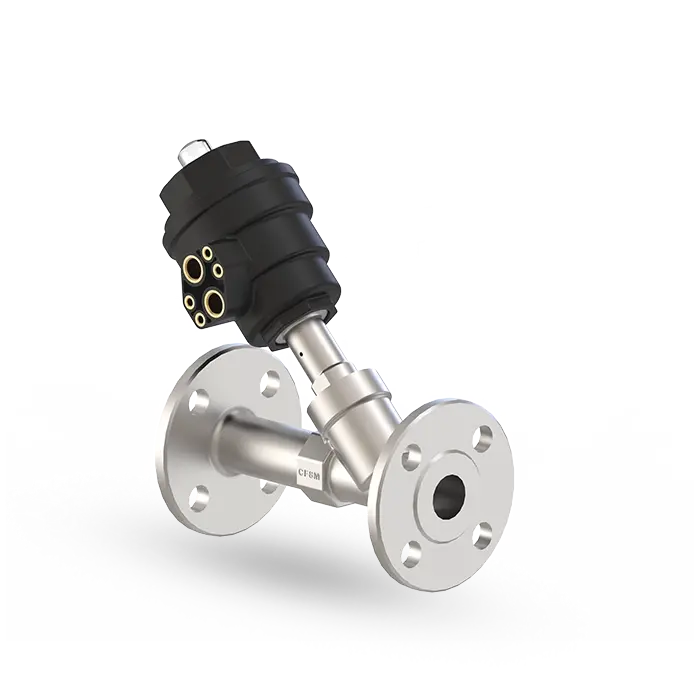

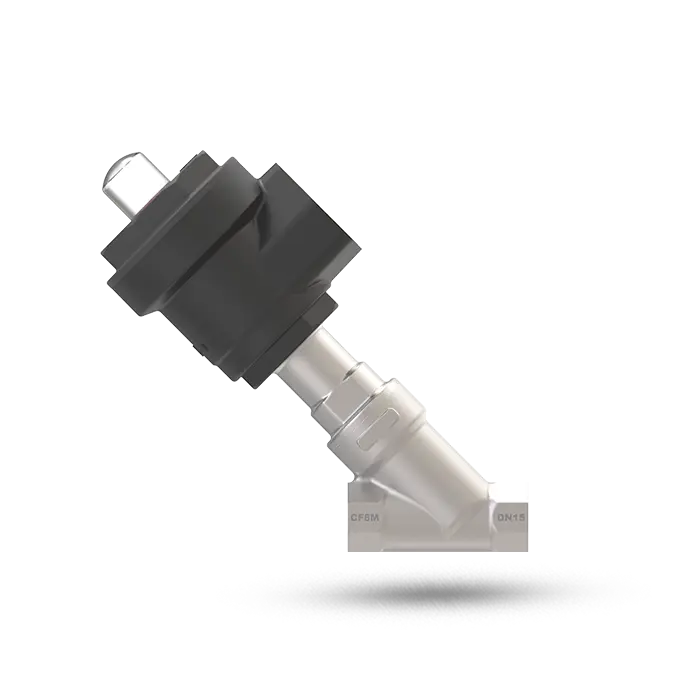

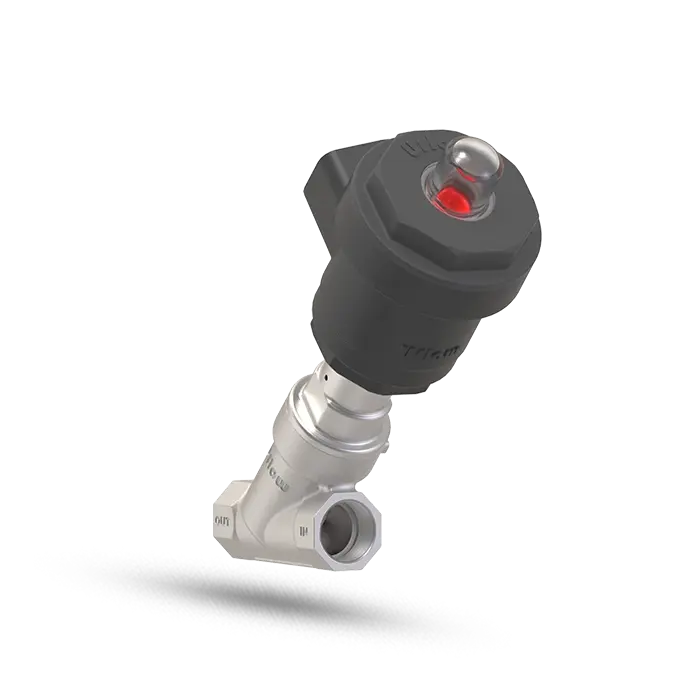

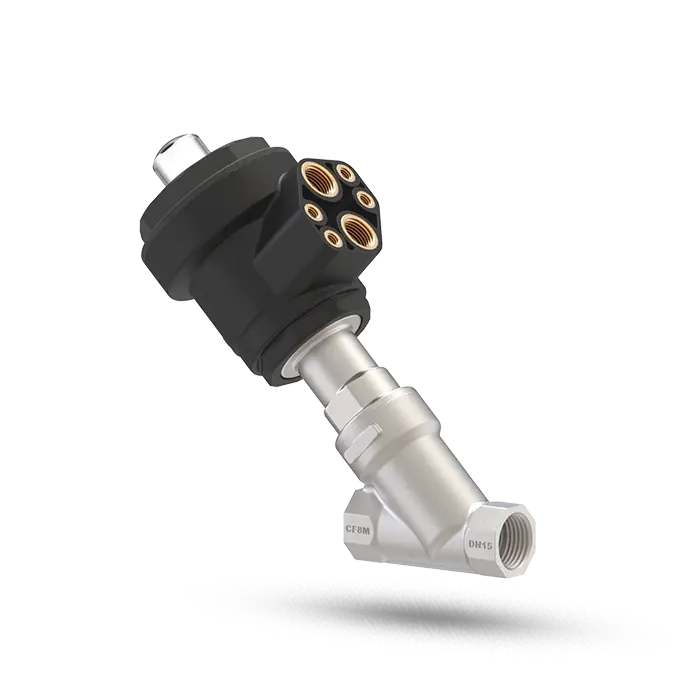

Angle Seat Valve with Plastic Actuator Operator (NC/NO/Double Acting) – ACP Series

The ACP Series Angle Seat Valve is designed for efficient flow control in steam, air, water, chemical, and gas applications. Its stainless steel body ensures durability, while the plastic actuator provides lightweight, corrosion-resistant performance. Available in Normally Closed (NC), Normally Open (NO), and Double Acting configurations, this valve is ideal for high-cycle industrial use.

Valve Specifications

• Port Sizes: ½”, ¾”, ³⁄₄”, 1”, 1¼”, 1½”, 2”, 2-1/2” (Available in BSP / NPT threads)
• End Connections: Screwed / Flange / Tri-Clamp / Socket Weld
• Body Material: SS ASTM A351 Grade CF8 / CF8M / CF3M
• Seal Options: PTFE / PEEK / VITON
• Shaft Material: SS304 / SS316
• Ambient Temperature Range: -10°C to 70°C
• Media Temperature Range: -10°C to 180°C
• Compatible Media:

  • Steam
  • Air
  • Water
  • Chemicals
  • Gases
  • Oil
  • Diesel
  • Hot Water

Actuator Specifications

• Cover Material: Nylon Glass-Filled (Corrosion-Resistant) with SS Liner
• Plate Material: NBR / VITON
• Working Pressure: Refer to pressure chart (available upon request)
• Cycle Life: Tested up to Three Million Cycles
• Additional Features (Available on Request):

  • Adjustable Stroke Limiter
  • Position Sensor Integration

Applications

The ACP Series Angle Seat Valve is widely used in:

• Steam and High-Temperature Systems – Safe and efficient steam control.
• Food & Beverage Processing – Complies with hygiene standards, ideal for CIP/SIP systems.
• Pharmaceutical & Chemical Industries – Handles aggressive chemicals and gases.
• Pneumatic & Compressed Air Systems – Efficient airflow regulation.
• Oil & Gas Industry – Manages high-pressure fluids reliably.
• Water Treatment & Filtration – Leak-tight performance for water control.

Key Features & Benefits

• Corrosion-Resistant Stainless Steel Body – Ensures durability in harsh environments.
• Lightweight & Durable Plastic Actuator – Nylon glass-filled for long-term reliability.
• Wide Temperature Range – Operates from -10°C to 180°C.
• Multiple End Connections – Available in screwed, flange, tri-clamp, and socket weld options.
• Various Actuation Modes – NC, NO, or Double Acting for system flexibility.
• Long Life Cycle – Tested for three million cycles for durability.
• Adjustable Stroke & Position Sensor Option – Precision control for industrial applications.
• Fast & Reliable Switching – Quick response for critical processes.
