Angle Seat Valve/ Y-Control Valve

Angle seat valves are 2/2 way pneumatically actuated piston valves. The piston actuator provides a linear motion to lift the seal off its seat. Because the seat is positioned under an angle, the flow is minimally impeded in the open position, resulting in an excellent flow rate and a pressure loss. They regulate the flow of liquids, gases, steam, vacuum, and even aggressive fluids. They can also operate with high temperatures and high viscosity media, even under zero differential pressures. The robust design makes UFLOW angle seat valves a popular choice for harsh applications and they have very high life cycle. Therefore they are an excellent alternative to Ball valves with an actuator combo. These valves are also suitable alternatives for solenoid valves, especially with contaminated, viscous media where typical solenoid valves would fail. They may be operated using a single-acting or double-acting configuration, which influences its pressure rating.

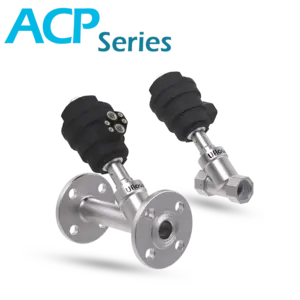

Angle Seat Valve with Plastic Actuator (ACP)

 Features:

• Convertible from Single Acting to Double Acting.
• Multiple Functions with the same operated- NC/ NO/ Bi-Directional.
• Rotatable Actuator- 360°.
• Transparent dome for visual confirmation of the valve’s position/ state.
• Lubricated air is not essential.
• Flow direction below or above the seat.
• Media: Steam, Air, Water, Chemical, Gases, Oil, Diesel, Hot Water.
• Application: Steam, Autoclave and Sterilizer, Ink, and Paint dispensing, Industrial compressor bottling and dispensing equipment, textile dying and drying, and pharmaceutical.

Specifications:

Size: 1/2″, 3/4″, 1″, 1.1/4″, 1.1/2″, 2″, 2.1/2″

Connection: Screwed (BSP/ NPT) / Flanged / Tri-Clamp

Body & Sleeve Material: SS ASTM A351 Grade CF8/ CF8M/ CF3M

Seal: TELFON/ PEEK/ VITON

Shaft: SS 304/ SS 316

Circumstance Temp: -10°c to 70°c

Media Temperature: -10°c to 180°c

Actuator Type:

Cover: Nylon Glass-Filled (Corrosive resistive) with SS Liner

Seal: NBR/ VITON

Life: Three Million Cycle Tested

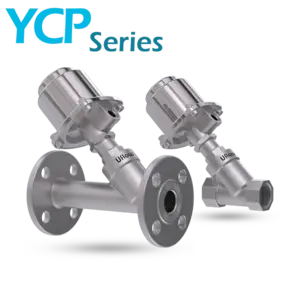

Angle Seat Valve with Steel Actuator (YCP)

Specifications:

 Size: 1/2″, 3/4″, 1″, 1.1/4″, 1.1/2″, 2″

Connection: Screwed (BSP/ NPT) / Flanged / Tri-Clamp

Body Material: SS ASTM A351 Grade CF8/ CF8M/ CF3M

Seal: TEFLON/ VITON

Circumstance Temperature: -10°c to 70°c

Media Temperature: -10°c to 180°c

Media: Steam, Air, Water, Chemical, Gases, Oil, Diesel, Hot Water

Actuator Type:

Cover: SS 304

Plate: Aluminium Die-Cast

Working Pressure: 3.5 to 7 bar air (Not Recommended actuator for pneumatic pressure above 7 bar)

Seat Material: NBR/ VITON

Life: More than ten million cycle
