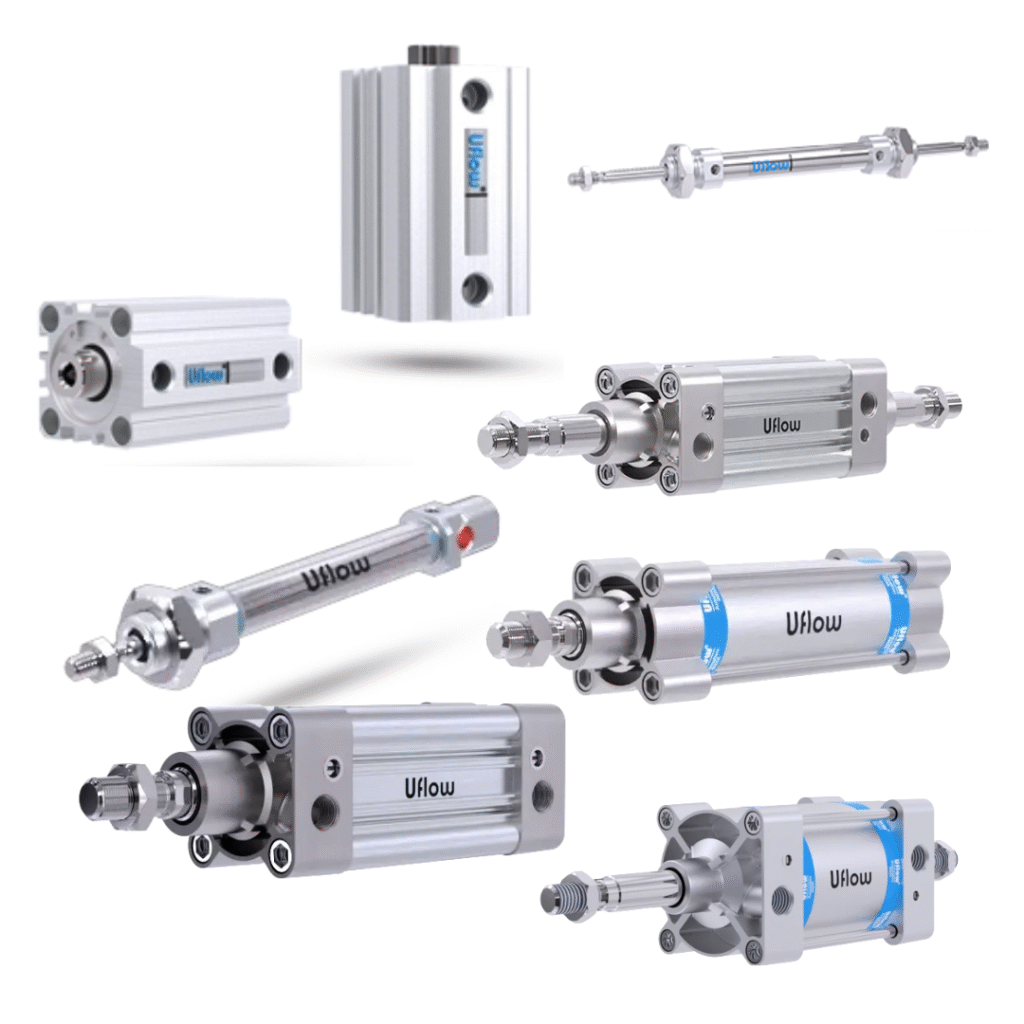

Uflow Pneumatic Cylinders

Uflow Pneumatic Cylinders are designed to provide precision, reliability, and adaptability across various industrial applications. Built with high-quality materials and conforming to ISO standards, these cylinders offer solutions for standard, high-temperature, and corrosive environments.

1. Pneumatic Tie Rod Cylinder

Model: Standard Tie Rod Cylinder

These double-acting cylinders conform to ISO 15552 and VDMA 24562 standards, ensuring compatibility and high efficiency.

• Bore Sizes: 32 – 125 mm
• Stroke Lengths: 25 – 500 mm
• Working Pressure: 0.5 – 10 bar
• Temperature: 5°C to 60°C (standard), up to 150°C with Viton seals

Materials:

• Cylinder Body: Aluminum
• Seals: Nitrile (standard), Viton (optional)
• Piston Rod: Stainless Steel (SS304)

Features:

• Adjustable cushioning at both ends
• Multiple mounting options
• Durable, low-maintenance

Applications: Ideal for automation, manufacturing, material handling, and general industrial use.

2. Pneumatic Profile Cylinder

Model: Standard Profile Cylinder

Compact and robust, the Profile Cylinder is double-acting and ISO 15552 compliant, making it suitable for a variety of applications.

• Bore Sizes: 32 – 125 mm
• Stroke Lengths: 25 – 500 mm
• Working Pressure: 0.5 – 10 bar
• Temperature: 5°C to 60°C (standard), up to 150°C with Viton seals

Materials:

• Cylinder Body: Aluminum
• Seals: Nitrile (standard), Viton (optional)
• Piston Rod: Stainless Steel (SS304)

Features:

• Compact design with adjustable cushioning
• Versatile mounting options
• Maintenance-free

Applications: Perfect for automation, manufacturing, material handling, and pneumatic control panels.

3. Pneumatic Tie Rod Double End Cylinder

Models:

• C09: Non-Magnetic Tie Rod Double End Cylinder
• C10: Magnetic Tie Rod Double End Cylinder

Engineered for high performance and adhering to ISO 15552 and VDMA 24562 standards, these cylinders are available in magnetic and non-magnetic models.

• Bore Sizes: 32 – 125 mm
• Stroke Lengths: 25 – 500 mm
• Working Pressure: 0.5 – 10 bar
• Temperature: 5°C to 60°C (standard), up to 150°C with Viton seals

Materials:

• Cylinder Body: Aluminum
• Seals: Nitrile (standard), Viton (optional)
• Piston Rod and Lock Nut: Stainless Steel (SS304)

Features:

• Adjustable cushioning with elastomer pads
• Variety of mounting options
• High durability and optional corrosion resistance

Applications: Well-suited for automation, manufacturing, material handling, and control panels in demanding environments.

4. Pneumatic Profile Double End Cylinder

Provides precise linear motion with a broad selection of bore sizes, stroke lengths, and mounting configurations.

• Bore Sizes: 32 – 125 mm
• Stroke Lengths: 25 – 500 mm
• Working Pressure: 0.5 – 10 Bar
• Temperature:
  • Standard: +5°C to 60°C
  • High-Temperature: Up to 150°C with Viton seals

Materials:

• Standard: Aluminum, Brass, Steel, Acetal, Polyurethane, Nitrile
• High Temperature: Viton (FKM) seals

Mounting Options:

• Foot Mounting, Flange, Female Clevis, Trunnion

Accessories: Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End Spherical Eye

Features:

• Adjustable cushioning for smooth operation
• High-temperature and corrosion-resistant options

Applications: Ideal for automated machinery, manufacturing, high-temperature settings, and harsh environments.

5. Pneumatic Miniature Air Cylinder

For compact applications, the Miniature Air Cylinder delivers efficient actuation in limited spaces.

• Bore Sizes: 08 – 25 mm
• Stroke Lengths: 10 – 300 mm
• Working Pressure: 1 – 10 bar
• Temperature:
  • Ambient: -10 to 60°C
  • Medium: +5 to +50°C

Materials:

• Aluminum, Brass, Steel, Acetal, Polyurethane, Nitrile

Mounting Options:

• Front Foot Flange, Double Foot Mounting, Trunnion, Front and Rear Flange

Accessories: Clevis Foot Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner

Features:

• Low friction, long-life design
• Extensive mounting variety

Applications: Perfect for compact automation, light manufacturing, and pneumatic control panels.

Uflow Pneumatic Cylinders deliver performance, durability, and adaptability, making them essential for any industrial pneumatic system. Designed to ISO standards with adjustable cushioning, high-temperature seals, corrosion-resistant materials, and various mounting options, these cylinders are adaptable to numerous industrial applications including automation, material handling, and high-temperature and corrosive environments.
