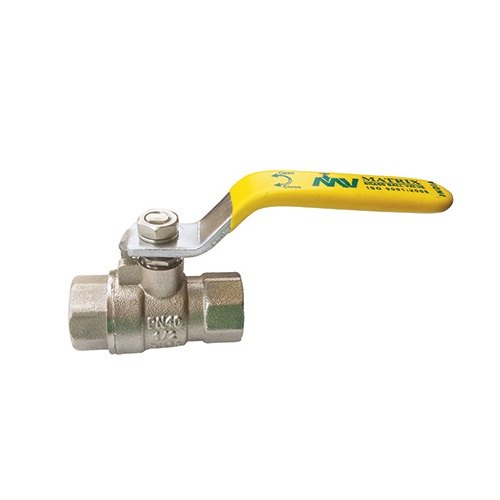

2 Way Brass Ball Valves

The 2 Way Brass Ball Valves is engineered for reliable performance in a wide range of applications. With a pressure rating of PN-25, it is designed to handle pressures up to 25kg/cm²g, ensuring durability and safety in various industrial environments.

Available in sizes ranging from 1/4″ to 4″, this ball valve accommodates different pipe diameters and flow rates, offering versatility for diverse applications. The body material is crafted from high-quality forged brass, providing robustness and corrosion resistance for long-term use.

The valve features a two-piece design with a lever-operated mechanism, allowing for easy operation and control of fluid flow. The seat is made of renewable PTFE (Polytetrafluoroethylene), ensuring a reliable seal and preventing leaks even under high pressures.

The ball itself is constructed from brass and nickel-plated for added durability and corrosion resistance, ensuring smooth operation and longevity. The stem is machined brass, nickel-plated to resist corrosion and provide a secure connection between the handle and the ball.

Packing material is PTFE, known for its excellent chemical resistance and low friction properties, ensuring smooth operation and leak-free performance. The port opening is full bore, allowing for maximum flow capacity and minimal pressure drop.

End details feature screwed female BSP parallel threads, providing a secure and leak-free connection with other BSP threaded fittings.

The Forged Brass Ball Valve undergoes rigorous testing to ensure quality and reliability. With a body test pressure of 40kg/cm²g and a working pressure of 25kg/cm²g, it demonstrates durability and performance under demanding conditions.

The Forged Brass Ball Valve offers reliable performance, durability, and ease of use, making it an ideal choice for a wide range of industrial applications requiring precise flow control and leak-free operation.
